产品简介 :

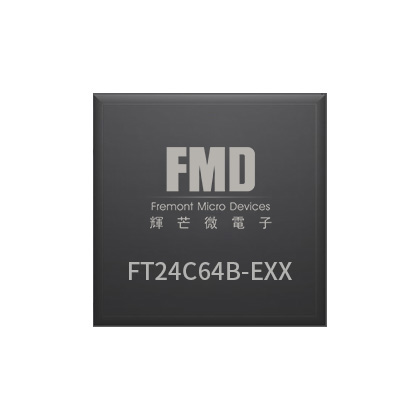

The FT24C64B series are 65,536 bits of serial Electrical Erasable and Programmable Read Only Memory, commonly known as EEPROM. They are organized as 8192 words of 8 bits (one byte) each.  They offer an additional page (Identification Page) of 32 bytes. They also provide the Write Device Address instruction for users to implement configurable device address features. The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications. The device features programmable software write protection which provides partial as well as full memory array protection. These devices are available in thin 4-ball WLCSP package.  A standard 2-wire serial interface is used to address all read and write functions.  Our extended VCC range (1.7V to 5.5V) devices enables wide spectrum of applications.

产品特点 :

Low voltage and low power operations:

    FT24C64B:  VCC = 1.7V to 5.5V

32 bytes page write mode.

Partial page write operation allowed.

Internally organized: 8,192 × 8 (64K).

Configurable device address.

Programmable Software Write protect:

    Upper quarter memory array

    Upper half memory array

    Upper 3/4 memory array

    Whole memory array

Standard 2-wire bi-directional serial interface.

Schmitt trigger, filtered inputs for noise protection.

Self-timed Write Cycle (5ms maximum).

1000 kHz (5.5V, 2.5V), 400 kHz (1.7V) Compatibility.

Automatic erase before write operation.

High reliability: typically 1,000,000 cycles endurance.

100 years data retention.

Industrial temperature range (-40℃ to 85℃).

Standard CSP Pb-free packages.
